STATIONARY MACHINES
We ship all over the world !

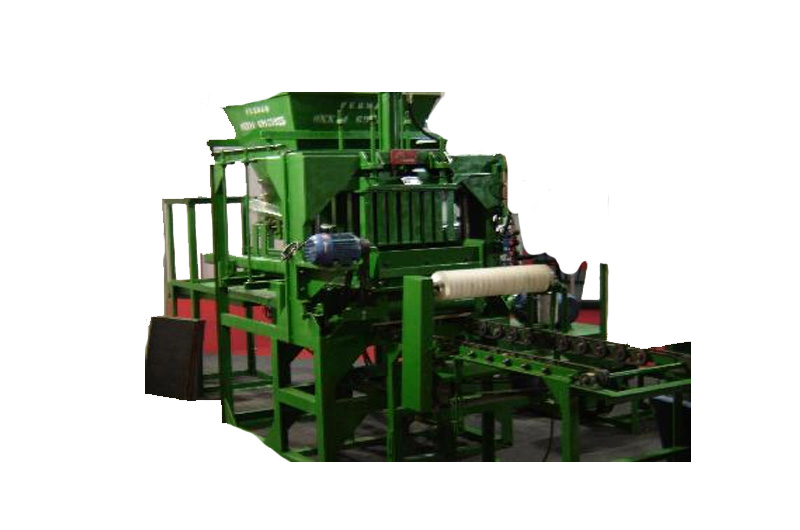

SHD-1000
The SHD1000 Automatic Block Making Machine
is similar to the SMB0100 but this is a hydraulic machine which has the same production capabilities as the other machine, but produces a stronger block, due to the greater pound pressure applied by the hydraulic system.The block manufacturer can also realize substantial savings by using less cement. A ratio from 8:1 to 11:1 sand/cement can be achieved. This machine is designed for the manufacturer with limited space, limited budget and the desire to achieve good quality, high volume of blocks, with the minimum cash outlay.
There are many machines on the market that are much larger and triple the price, with a daily production that is similar or less than this machine.
This machines can be equipped with an automatic elevator/skip for loading mix into hopper, agitator, an automatic pallet feeder, pallet ejector, brush for cleaning blocks and a run off conveyor (see above). It is suggested that you use a high capacity mixer of over 500 liters. A work force of 5 to 7 employees would keep this factory running at full capacity.

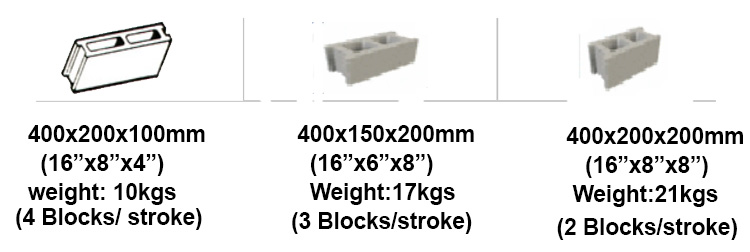

Capacity:
- 400 x 200 x 090mm (3.5") blocks, 5 per cycle or 7500 per day
- 400 x 200 x 100mm (4") blocks, 4 per cycle or 6000 per day
- 400 x 200 x 150mm (6") blocks, 3 per cycle or 4500 per day
- 400 x 200 x 200mm (8") blocks, 2 per cycle or 3000 per day
The blocks shown in this picture is for demonstration purposes only. It is easy to provide you with the block shape of your choice.

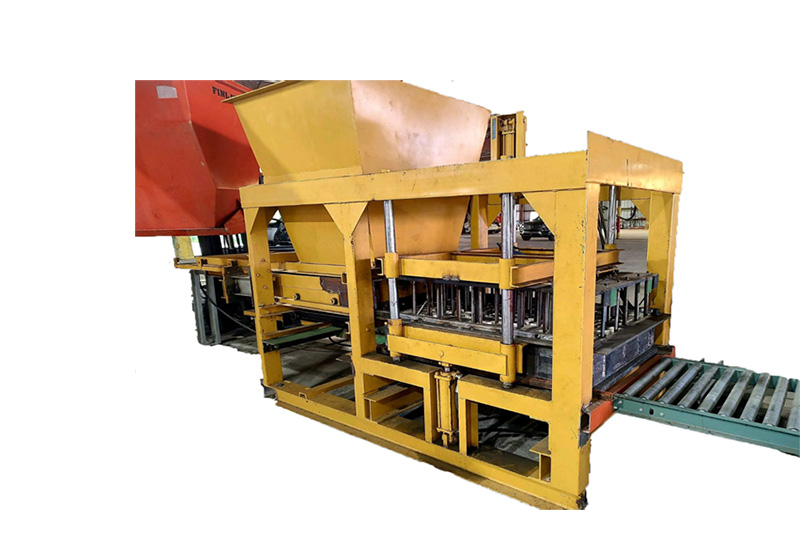

SHD-700
The SHD-700 Automatic Block Making Machine
is the largest stationary machine that we feature This machine can utilize both hydraulic and pneumatic systems, depending on the customer's preference. Hydraulic system is always used for pressing and releasing the blocks. The block manufacturer can also realize substantial savings by using less cement. A ratio from 8:1 to 12:1 sand + aggregate to cement can be achieved. This machine is designed for the manufacturer with limited space, limited budget and the desire to achieve good quality, high volume of blocks, with the minimum cash outlay.There are many machines on the market that are much larger and triple the price, with a daily production that is similar or less than this machine. This machines can be equipped with an automatic elevator/skip for loading mix into hopper, agitator, an automatic pallet feeder, pallet ejector, brush for cleaning blocks and a run off conveyor. It is suggested that you use a high capacity mixer of over 600 liters. A work force of 5 to 7 employees would keep this factory running at full capacity.
Size Of Moulds:
- 100 x 200 x 400 mold (4") = 08 blocks per cycle or 9600 per day
- 150 x 200 x 400 mold (6") = 05 blocks per cycle or 6000 per day
- 200 x 200 x 400 mold (8") = 04 blocks per cycle or 4800 per day

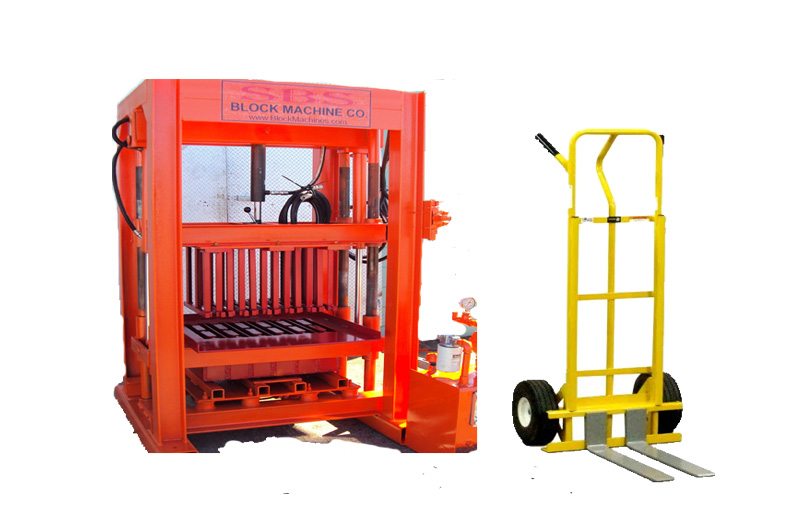

SHD-640/754
This is a Specially Designed Low Profile Block Machine
we playfully call it the poor man’s block factory. Your factory can be up and running by just adding a mixer and wheelbarrow. The green blocks are removed from the block machine, by means of a specially designed fork hand truck. A slightly inclined ramp is required.The SHD640 Hydraulic Block Making has the same production capabilities as the other machine, but produces a stronger block and cost thousands of dollars less than machines with similar production capabilities.
The block manufacturer can also realize substantial savings by using less cement. A ratio from 8:1 to 11:1 sand/cement can be achieved. This machine is designed for the manufacturer with limited space, limited budget, and the desire to achieve good quality, high volume of blocks, with the minimum cash outlay. You will need a good mixer of over 400 liters to guarantee maximum production. A workforce of 5 employees would keep this factory running at full capacity.
Size Of Moulds:
Model SHD-640
- 100 x 200 x 400mm (4") 06 blocks per cycle or 6000 per day
- 150 x 200 x 400mm (6") 04 blocks per cycle or 4000 per day
- 200 x 200 x 400mm (8") 03 blocks per cycle or 3000 per day
Model SHD-754
- 100 x 200 x 400mm (4") 07 blocks per cycle or 7000 per day
- 150 x 200 x 400mm (6") 05 blocks per cycle or 5000 per day
- 200 x 200 x 400mm (8") 04 blocks per cycle or 4000 per day

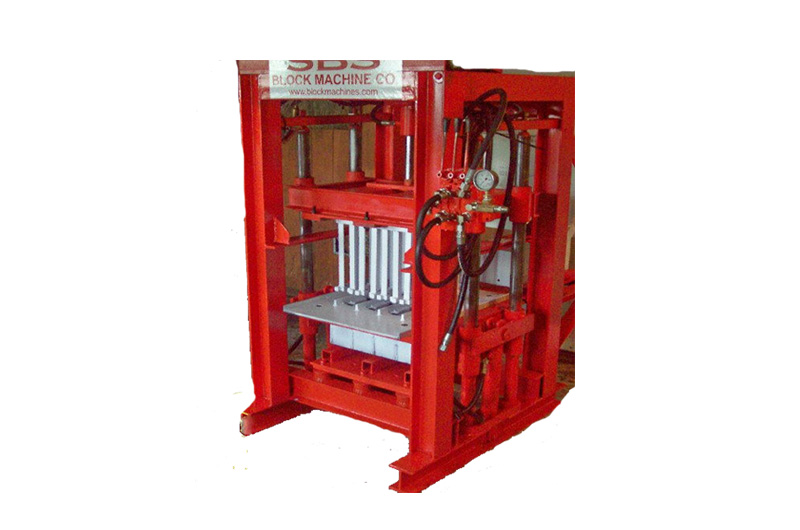

SBM-0100
This is Pneumatic Stationary Machine
that can produce about 6,000 four inch blocks per day. It can be equipped with an automatic elevator for loading mix into hopper. It requires a concrete mixer with a capacity of at least 300 liters to maintain a constant flow of blocks. This machine requires a commercial grade air compressor of at least 20 cu.ft. The machine as illustrated is the SUPERMAC, which features a pallet feeder, pallet ejector, cleaning brush for exit blocks and a run off conveyor. The SMB0100 is the basic model without the pallet feeder/ejector and exit conveyor with cleaning brush. .Production Rate:
- 5 - 09 x 20 x 40mm (3.5") blocks per cycle or about 6,000/day
- 4 - 10 x 20 x 40mm (4") blocks per cycle or about 5,000/day
- 3 - 15 x 20 x 40mm (6") blocks per cycle or about 3,750/day
- 2 - 20 x 20 x 40mm (8") blocks per cycle or about 2,500/day

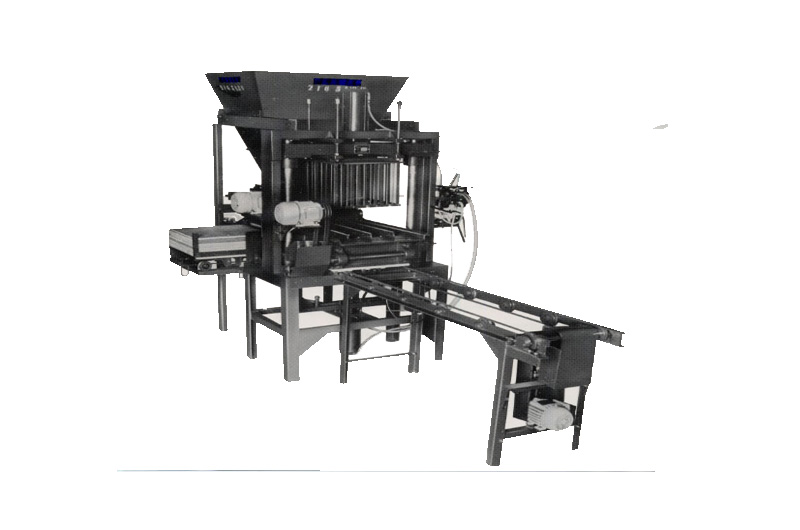

SMB0100-4BL
This machine can also be outfitted as the SUPERMAC, which features a pallet feeder, pallet ejector, cleaning brush for exit blocks and a run off conveyor. The SMB0100 is the basic model without the pallet feeder/ejector and exit conveyor with cleaning brush.
Production Rate
- 6 - 10 x 20 x 40mm (4") blocks per cycle or about 7,500/day
- 4 - 15 x 20 x 40mm (6") blocks per cycle or about 5,000/day
- 3 - 20 x 20 x 40mm (8") blocks per cycle or about 3,500/day
SHD1000-4BL
The SHD1000-4BL Automatic Block Making Machine is similar to the SMB0100-4BL
but this is a hydraulic machine which has the same production capabilities as the other machine, but produces a stronger block, due to the greater pound pressure applied by the hydraulic system. The block manufacturer can also realize substantial savings by using less cement. A ratio from 8:1 to 11:1 sand/cement can be achieved. This machine is designed for the manufacturer with limited space, limited budget and the desire to achieve good quality, high volume of blocks, with the minimum cash outlay.here are many machines on the market that are much larger and triple the price, with a daily production that is similar or less than this machine. This machines can be equipped with an automatic elevator/skip for loading mix into hopper, agitator, an automatic pallet feeder, pallet ejector, brush for cleaning blocks and a run off conveyor (see above). It is suggested that you use a high capacity mixer of over 500 liters. A work force of 5 to 7 employees would keep this factory running at full capacity.
Production Rate:
- 100 x 200 x 400 mold (4") = 06 blocks per cycle or 9000 per day
- 100 x 200 x 400 mold (4") = 06 blocks per cycle or 9000 per day
- 200 x 200 x 400 mold (8") = 03 blocks per cycle or 4500 per day

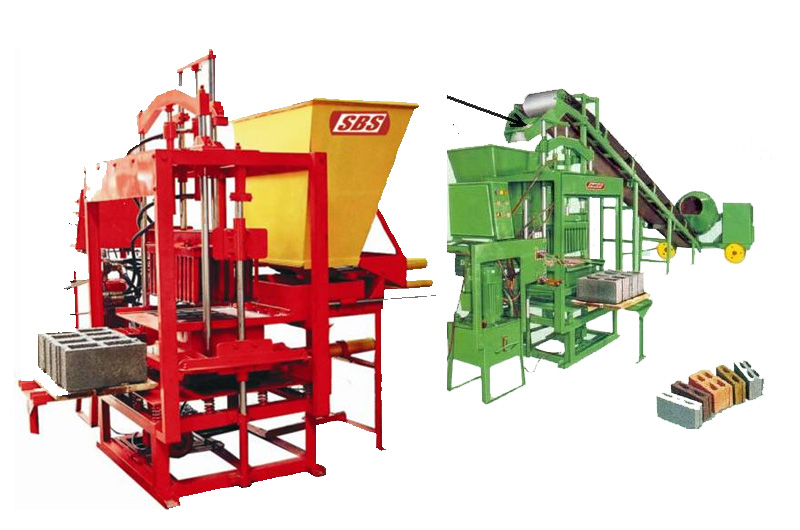

SHD 106/SHD106-4BL
The SHD1000 Automatic Block Making Machine
Specifications::
- Power: 6.5 HP 3 Phase, 440 volts or 2 Phase 220 volts. S model works best with 3 phase electric.
- Hydraulic Pump: 5 HP, 3.5GPM, 2880 RPM, producing 20 liters at 140 bar. The oil is supplied to the manual control valve, which controls the operation of the ram and the mould box lift. The hydraulic circuit incorporates a filter and is protected by a preset relief valve.
- Vibrator: 1 HP 2880 RPM.
- Traveler: 0.5 HP 1440 RPM
- Weight: 1050 Kg. to 1450 Kg. depending on features.
Production Rate
- 3 - 8" blocks per cycle 2400 per 8 hours
- 4 - 6" blocks per cycle 3200 per 8 hours
- 6 - 4" blocks per cycle 4800 per 8 hours
- 2 - 10" blocks per cycle 1600 per 8 hours
- 2 - 12" blocks per cycle 1600 per 8 hours
- Pavers 20 x 10 x 7.5cm 7000 per 8 hours
- Beveled Edge Bricks 7200 per 8 hours.
- Plain Bricks 20 x 10 x 7.5cm 12800 per 8 hours
The blocks shown in this picture is for demonstration purposes only. It is easy to provide you with the block shape of your choice.

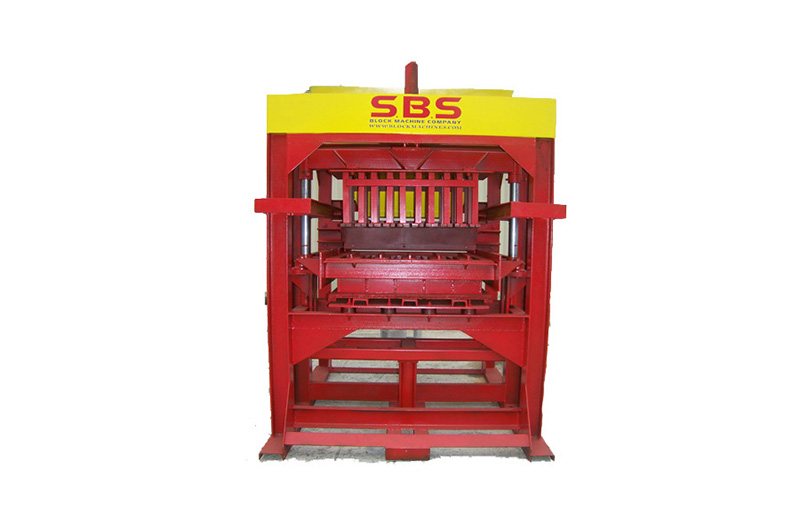

SHD-400/SHD346
The SHD400 Hydraulic Block Making has the same production capabilities as the other machine.
but produces a stronger block and cost thousands of dollars less than machines with similar production capabilities.
The block manufacturer can also realize substantial savings by using less cement. A ratio from 8:1 to 11:1 sand/cement can be achieved. This machine is designed for the manufacturer with limited space, limited budget and the desire to achieve good quality, high volume of blocks, with the minimum cash outlay.
There are many machines on the market that are much larger and triple the price, with a daily production that is similar or less than this machine.
You will need a good mixer of over 350 liters to guarantee maximum production. A work force of 5 employees would keep this factory running at full capacity.
Production Rate:
- 400 x 200 x 090mm (3.5") blocks, 5 per cycle or 5000 - day
- 400 x 200 x 100mm (4") blocks, 4 per cycle or 4000 per day
- 400 x 200 x 150mm (6") blocks, 3 per cycle or 3000 per day
- 400 x 200 x 200mm (8") blocks, 2 per cycle or 2000 per day
Greater Capacity:
Model SHD346
- 100 x 200 x 400mm (4") 06 blocks per cycle or 6000 per day
- 150 x 200 x 400mm (6") 04 blocks per cycle or 4000 per day
- 200 x 200 x 400mm (8") 03 blocks per cycle or 3000 per day
Additional Specs:
Approximate Weight 2500 -3200 lbs.
Applied pressure/Force to block during operation: 3.200 kg
The blocks shown in this picture is for demonstration purposes only. It is easy to provide you with the block shape of your choice.
